Description
Product details

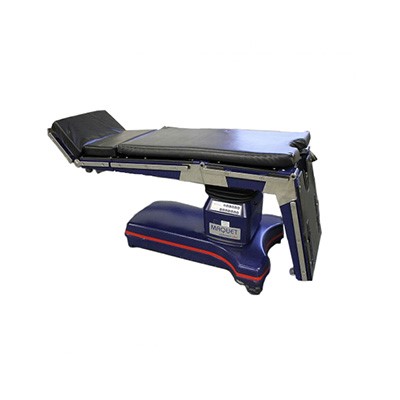

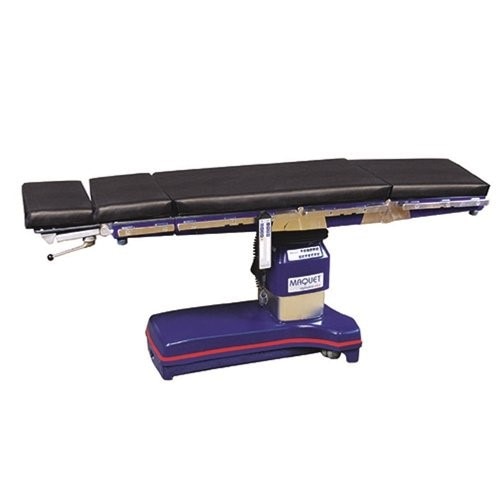

Maquet Alphastar Specifications Adjustment Options Height without padding • 1132.11 27.0" – 44.3" (685 – 1125 mm) • 1132.12 23.5" – 37.4" (598 – 950 mm) • 1132.13 27.0" – 42.1" (685 – 1070 mm) Dimensions • Length without a head plate and extension plates 51.2" (1300 mm) • Length with a head plate and extension plates 82.5" (2095 mm) • Width 20.5" (520 mm) • Width across side rails 23.2" (590 mm) Weights • Operating table weight 300 kg / 660 lbs • Maximum permissible overall load 270 kg / 600 lbs(patient weight and accessories) Tilting Features • Trendelenburg: +30°/-30° • Lateral tilt left/right: 18°/18° • NORMAL Backplate: +68°/-25° • Legplates: +80°/-105° • 0-Position: (resetting adjustments such as Trendelenburg / reverse Trendelenburg, lateral tilt, back plate and leg plates.) Additional Features • Base braking: (lock/unlock.) • Patient Orientation: (normal/reverse.) • Autodrive in the base. • (Equipment option in conjunction with the corded hand control.)
![Technical Data:
Console: Automatic function test, periodic sampling, emergency power, electric supply 230 V/ 50 Hz, power consumption 230 V/1450 W.
Roller pumps : RPM range 0 – 250 R/min [clockwise/anticlockwise] Flow rate 0 – 10 L/min, occlusion 0.03 mm.
Pressure regulation: +/– 997 mmHg, activation 1mmHg, optical & acoustic alarm release, digital readout.
Temperature measurement: 4 channels with sensors, measurement range 0 – 50° C, optical & acoustic alarm release, digital readout.
Bubble detector Detection : > 300 micrometer, pump stop > 0.065 qcm.
Level detector: Stop limitation 10 mm](https://productimages.withfloats.com/tile/628c8cbc9707290001679ff0.jpg)
