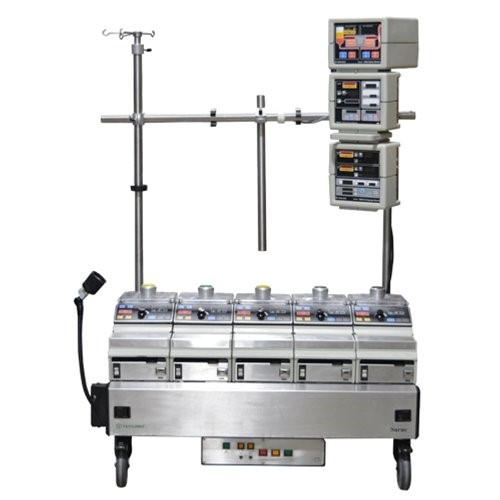

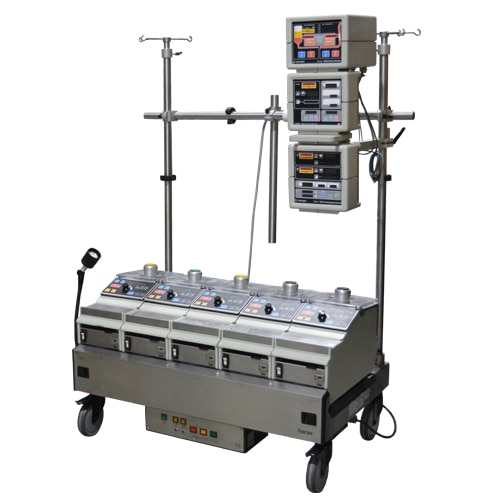

Terumo Sarns Modular Perfusion System 8000 Specifications- Dimensions • Telescope pole: 1.30” (3.3 cm) diameter, 6-7 feet (1.8 – 1.9 m) height 4-Pump Unit • Height 25.8” (65.5 cm) • Width 33.3” (84.5 cm) • Depth 26.5” (67.3 cm) • Weight 330 lbs (149.5 kg) 5-Pump Unit • Height 25.8” (65.5 cm) • Width 41.6” (105.6 cm) • Depth 26.5” (67.3 cm) • Weight 380 lbs (172.1 kg) Pump • Height 14” (35.6 cm) • Width 8.2” (20.8 cm) • Depth 19.7” (50 cm) • Weight 50 lbs (22.6 kg)
![Technical Data:

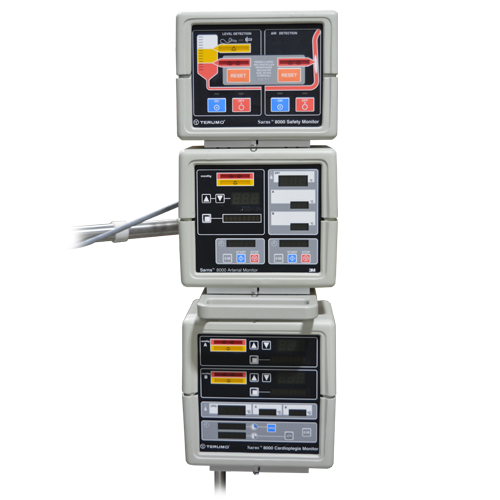

Console: Automatic function test, periodic sampling, emergency power, electric supply 230 V/ 50 Hz, power consumption 230 V/1450 W.
Roller pumps : RPM range 0 – 250 R/min [clockwise/anticlockwise] Flow rate 0 – 10 L/min, occlusion 0.03 mm.
Pressure regulation: +/– 997 mmHg, activation 1mmHg, optical & acoustic alarm release, digital readout.
Temperature measurement: 4 channels with sensors, measurement range 0 – 50° C, optical & acoustic alarm release, digital readout.
Bubble detector Detection : > 300 micrometer, pump stop > 0.065 qcm.
Level detector: Stop limitation 10 mm](https://productimages.withfloats.com/tile/628c8cbc9707290001679ff0.jpg)
